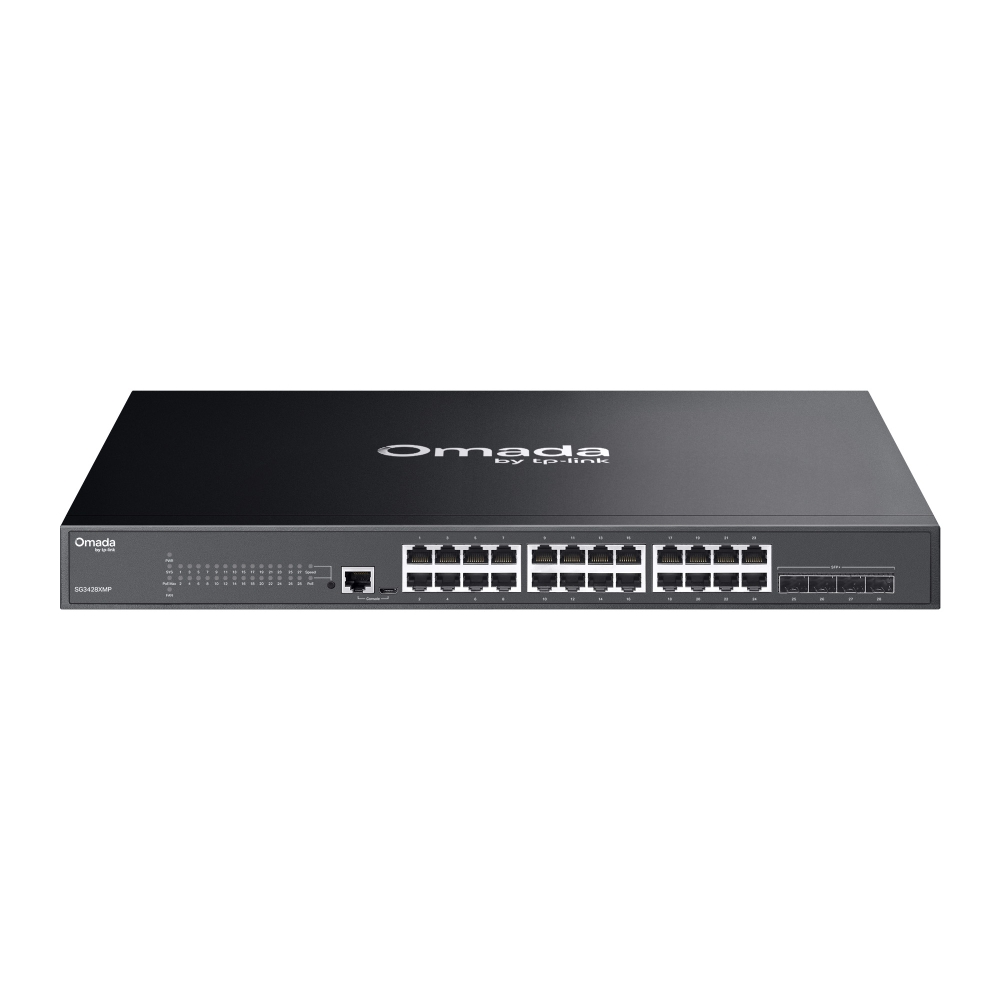

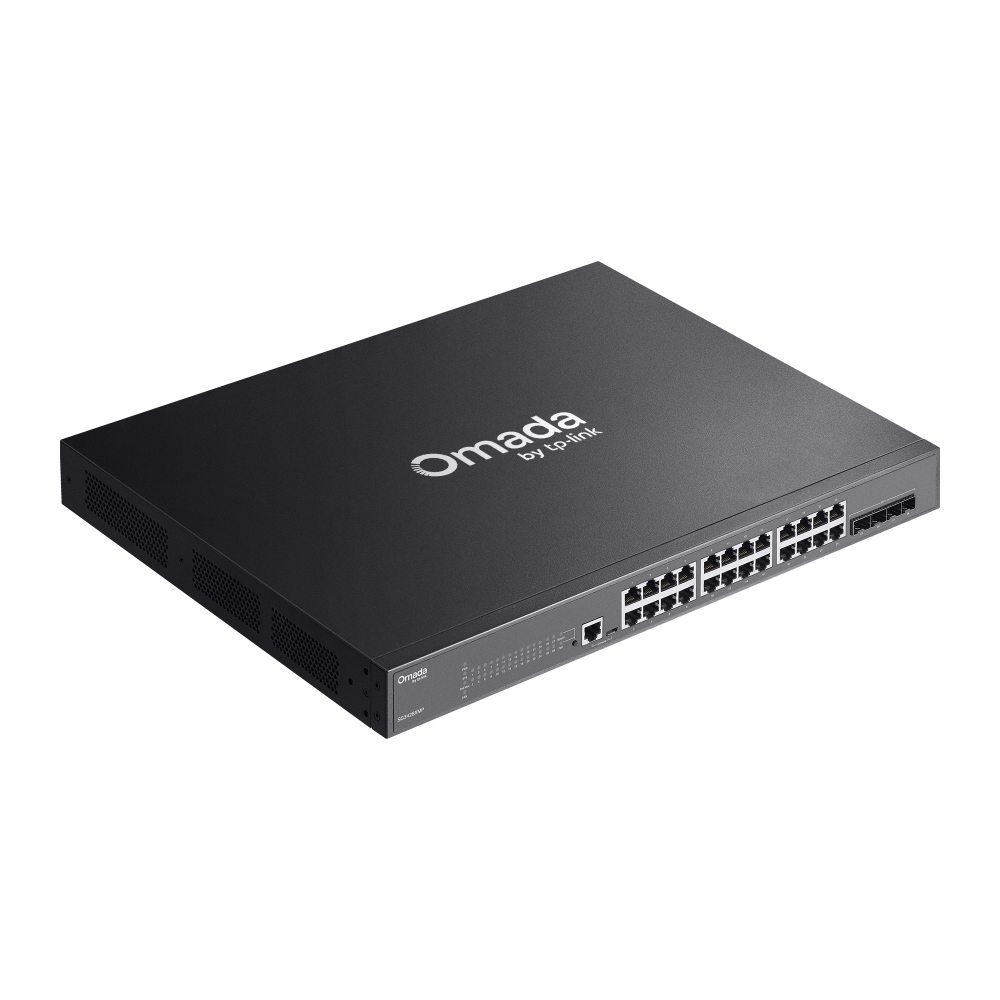

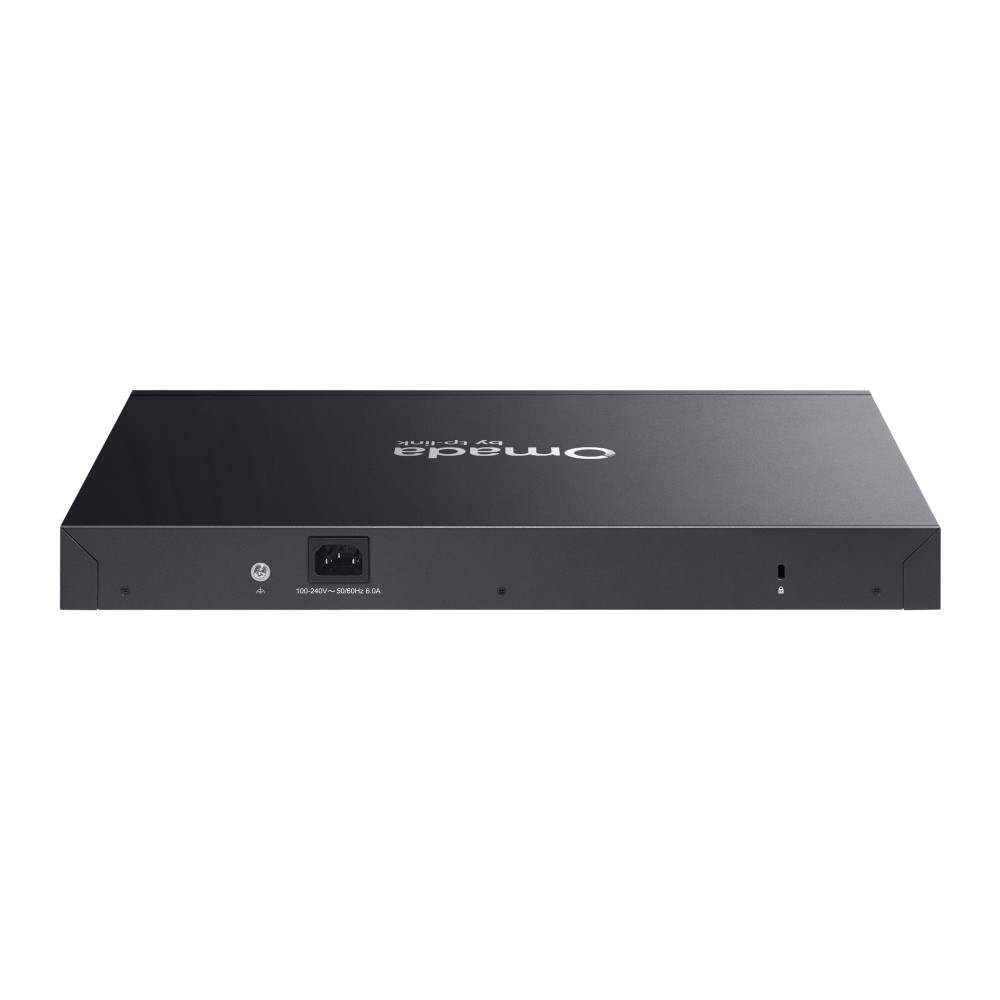

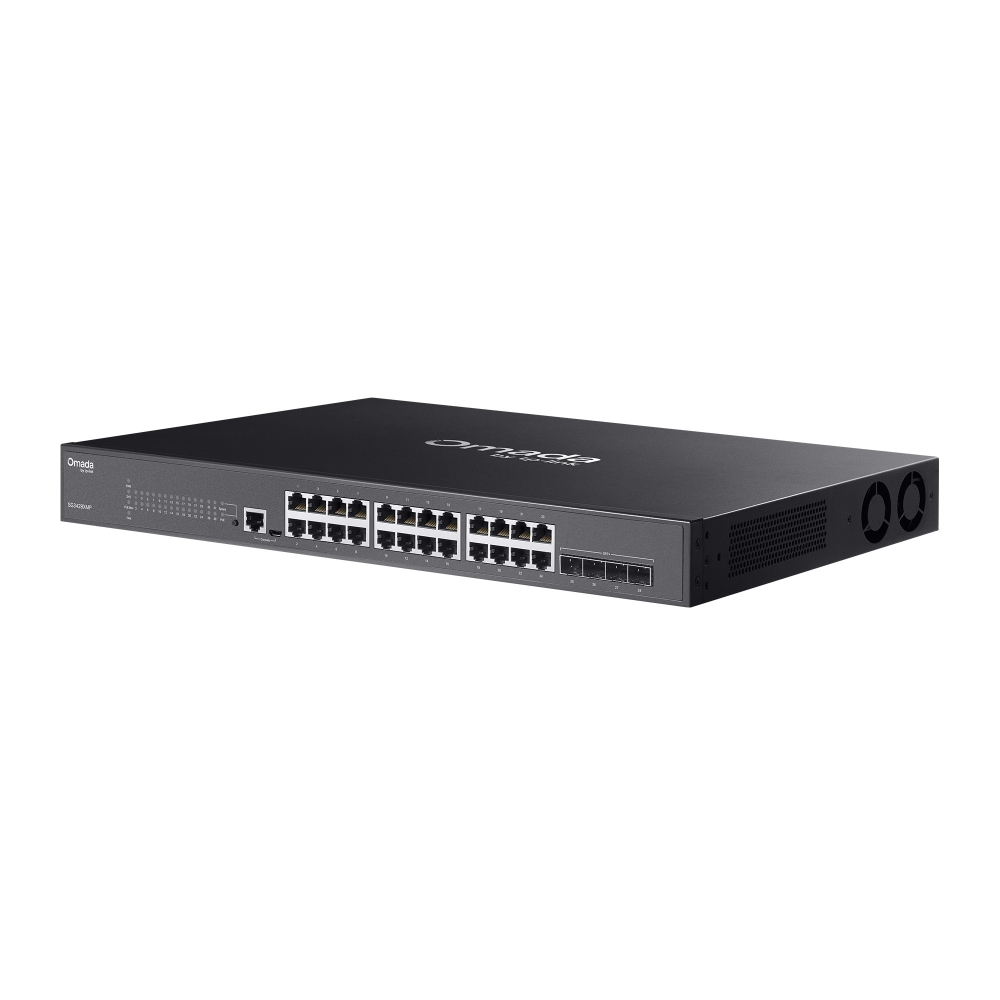

Omada By TP-Link SG3428XMP │ Access Plus 24-Port Gigabit And 4-Port 10GE SFP+ Switch With 24-Port PoE+

Categories: , SKU: SG3428XMP
  • Access Plus Switch 24-Port Gigabit And 4-Port 10GE SFP+ With 24-Port PoE+ รุ่น SG3428XMP
  • 4× 10 Gbps SFP+ slots
  • 24× Gigabit 802.3af/at PoE+ ports
  • 1x RJ45 Console Port
  • 1x Micro-USB Console Port
Contact Us
Download Catalog
  • 384 W total PoE budget with up to 30 W PoE output per port
  • 128Gbps switching capacity per unit
  • Static Routing helps route internal traffic for higher efficiency
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON
  • Security Strategies: VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology

STANDARDS AND PROTOCOLS

  • IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab (1000BASE-T) Ethernet IEEE 802.3x flow control IEEE 802.3az EEE support IEEE 802.1p CoS support IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP) IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward Auto MDI/MID-X
  • PoE Standard IEEE802.3at
  • Rack Mounting
  • รหัสสินค้า SG3428XMP ยี่ห้อ Omada By TP-Link
