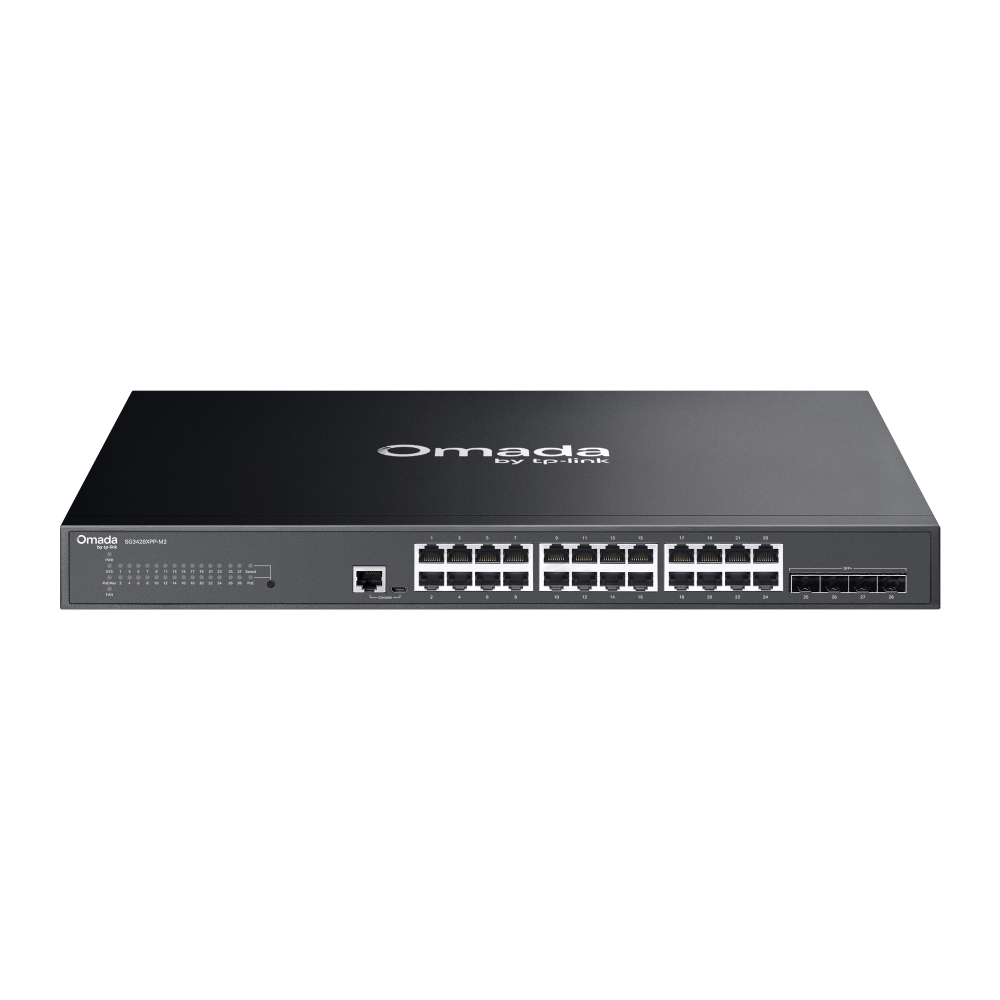

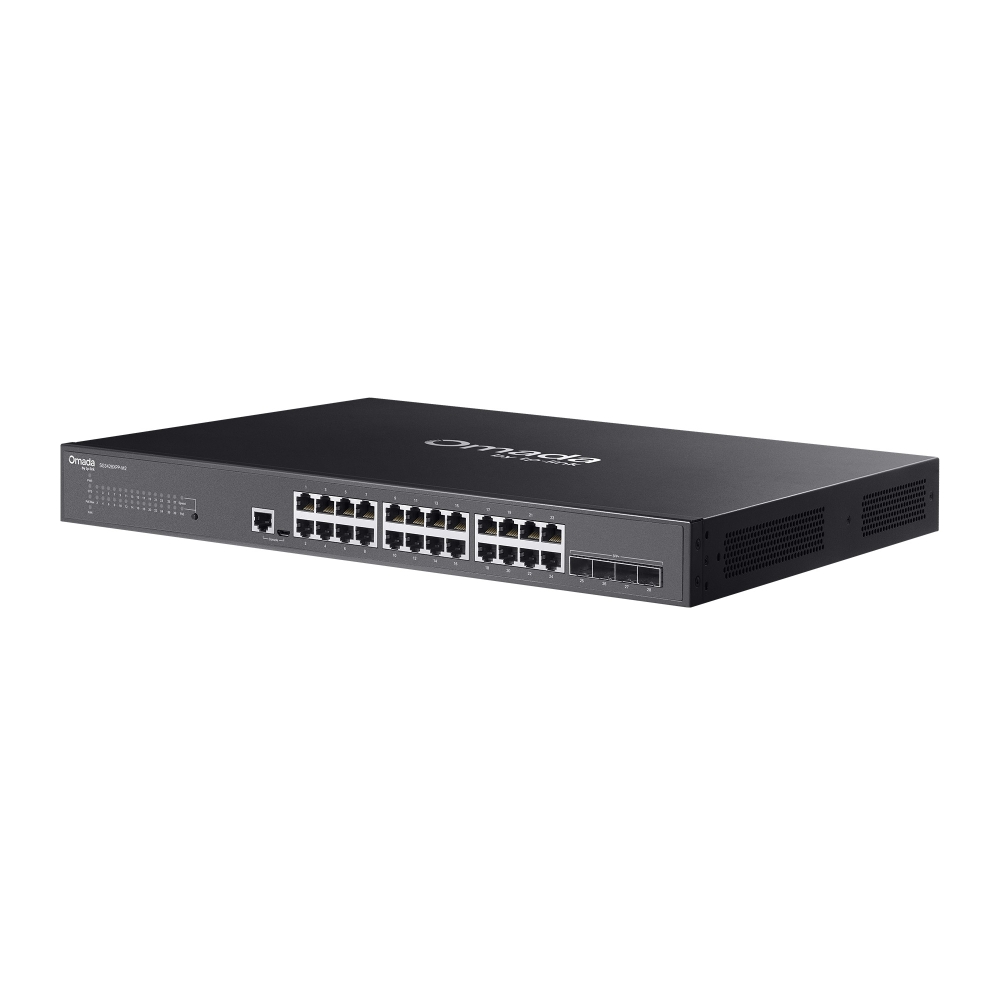

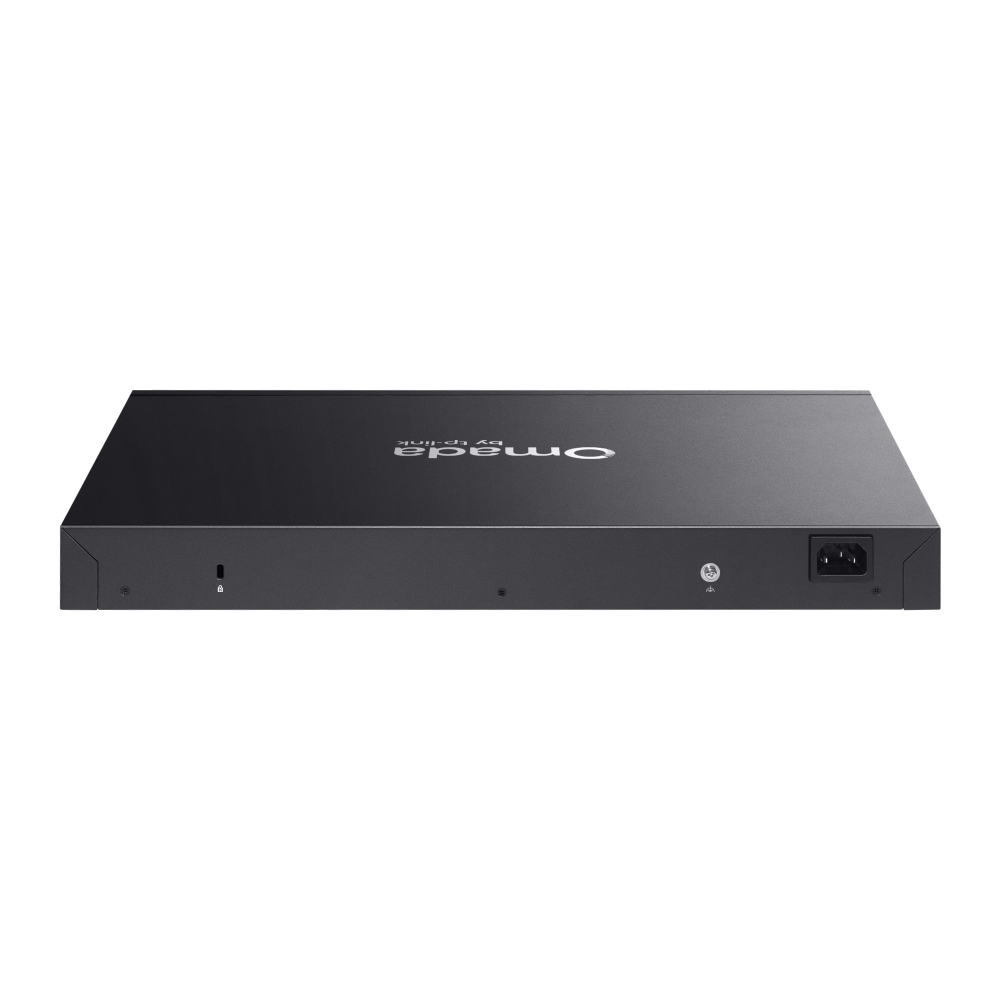

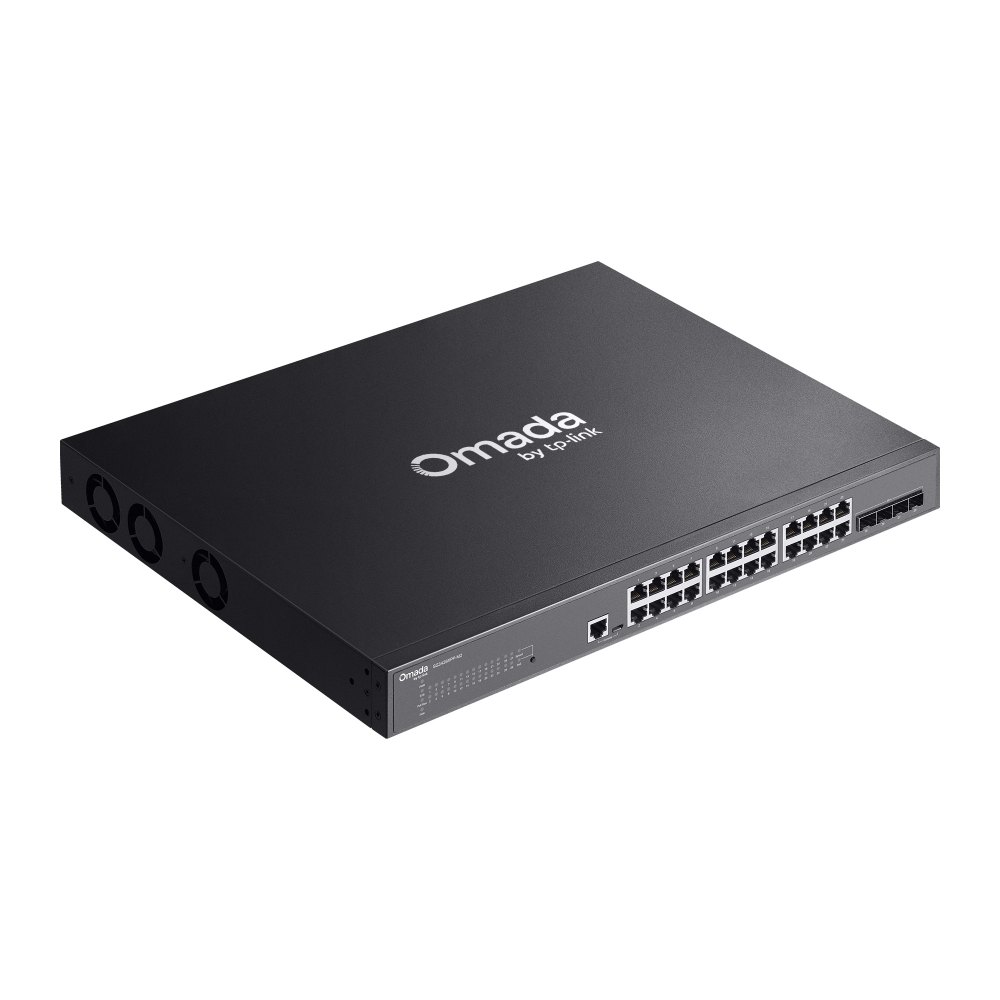

Omada By TP-Link SG3428XPP-M2 │ 24-Port 2.5G BASE-T And 4-Port 10GE SFP+ L2+ Managed Switch With 24-Port PoE+

Categories: , SKU: SG3428XPP-M2
  • Access Pro Switch 24-Port 2.5G And 2-Port 10GE SFP+ With 16 Port PoE+ & 8-Port PoE++ รุ่น SG3428XPP-M2
  • 24× 2.5G PoE++ ports (Max 90 W per port)
  • 4× 10G SFP+ slots
  • 1x RJ45 Console Port
  • 1x Micro-USB Console Port
Contact Us
Download Catalog
  • 770W total PoE budget
  • 200 Gbps switching capacity per unit
  • Static Routing helps route internal traffic for higher efficiency
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON
  • Security Strategies: VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology

STANDARDS AND PROTOCOLS

  • IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab (1000BASE-T) Ethernet IEEE 802.3x flow control IEEE 802.3az EEE support IEEE 802.1p CoS support IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP) IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward Auto MDI/MID-X
  • PoE Standard IEEE802.3at
  • Rack Mounting
  • รหัสสินค้า SG3428XPP-M2 ยี่ห้อ Omada By TP-Link
